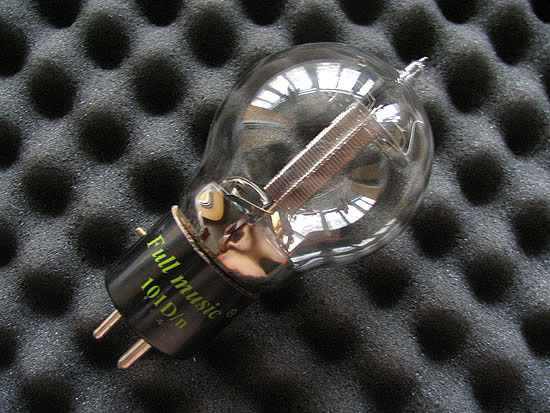

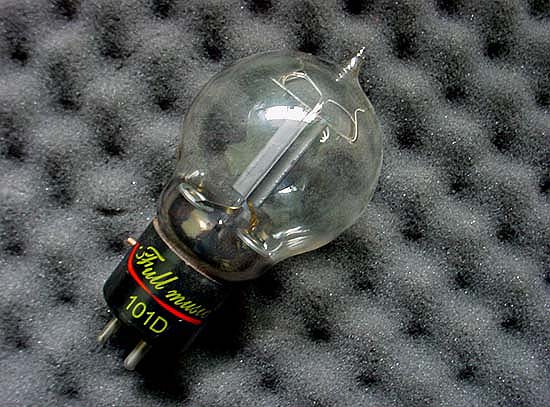

<< 101D 101D/n Vacuum Tube



Classification- Globe-type bulb of glass, a white ceramic base with four-prong bayonet golden pins, oxide coated filamentary, solid plate or mesh plate triolde.

Application -Voice frequency and carrier-frequency amplifier. Other applications where small power output are required.

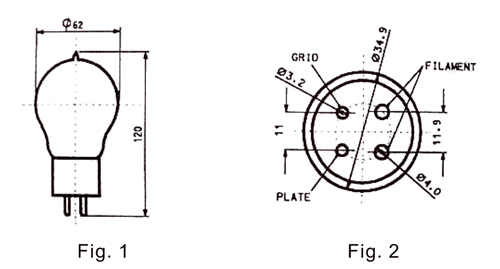

Dimensions -Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1and 2.

Nominal operating conditions and parameters
Filament voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 4.5V
Nominal filament current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 1.0A
Plate voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 160V
Grid voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ -12V
Plate resistance ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 5.3kohms
Plate current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 9.9mA
Amplification factor ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 6.2

*Direct-current filament supply is used. The grid and platter returns are connected to the negative end of the filament.

Characteristics-Average characteristics

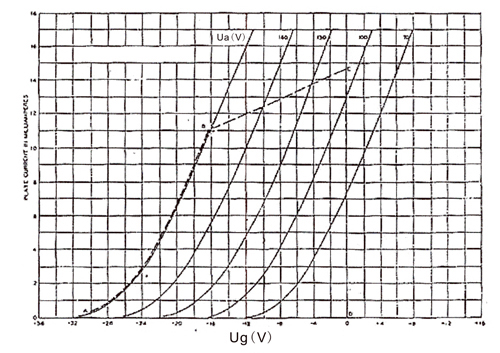

Figure 3. shown typical curves of plate currents of grid voltage for several values of plate voltages. It is alternating-current filament supply.

Fig 3

Limiting Operation Conditions for Safe Nor simultaneous ratings
Maximum plate voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 190 volts
Maximum plate current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 15mA
