<< 274B/+ 274A /+ Vacuum Tube




Classification- Dome-type bulb of glass, a white ceramic base with four-prong bayonet golden pins, oxide coated filamentary, mesh plate twin diode.

Application -It is designed to supply direct current up to 200 miliamperes from an alternating current soure.

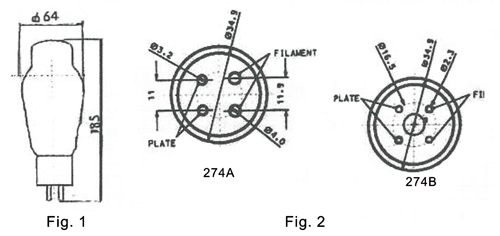

Dimensions -Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1 and 2.

Nominal operating conditions and parameters
Filament voltage* ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 5.0V
Nominal filament current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 4A

Choke-Input filter
RiM-S Alternating voltage prelate ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 550V
Tolal rectified current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 140mA

Condenser-Input Filter
RiM-S Alternating voltage prelate ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 450V
Tolal rectified current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 120mA

*Alternating-current filament supply or Direct-current filament supply.

Characteristics-Average characteristics

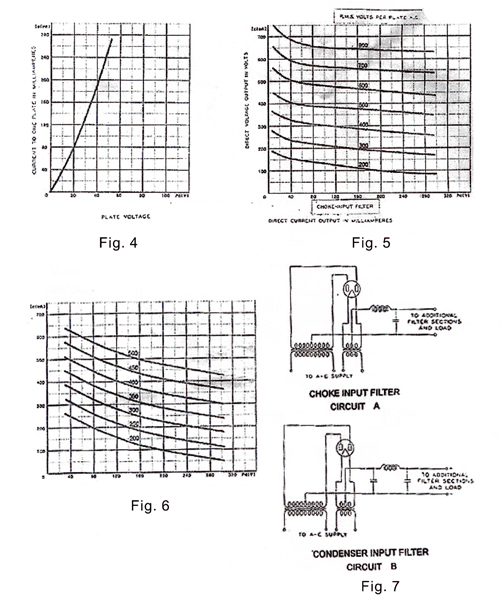

The current-voltage characteristic of a single diode untie of the 274A /B/+tube is shown in Figure 3. Direct-voltage output characteristics are given in Figures 4 and 5. The characteristics of Figure 4 are for a choke-input filter such as is shown in circuit A and those of Figure 6 are for a condenser-input filter such as is shown in circuit B.

Limiting Operation Conditions for Safe Nor simultaneous ratings

Choke-input filter:
1 Max. R-M-S alternating Voltage per plate ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 550 volts
1 Max Total Rectified Current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 250 mA
2 Max. R-M-S Alternating Voltage per plate ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 660V
2 Max. Total Rectified Current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 200mA

Condenser-input Filter:
1 Max.R-M-S Alternating Voltage per plate ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 450V
1 Max. Total Rectified Current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 200mA

*4uF.Maximum filter input capacitance
