<< 50/n 50/c Vacuum Tube

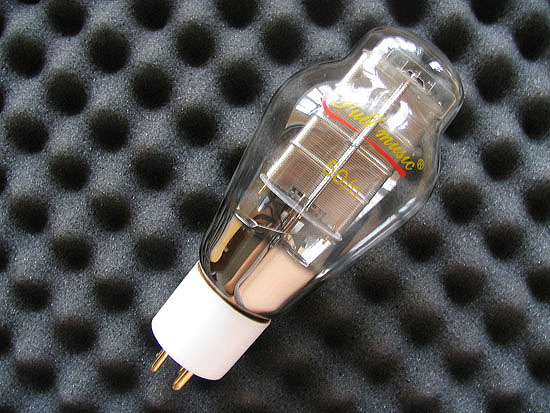

Classification- Dome-type bulb of glass, a white ceramic base with four-prong bayonet golden pins, oxide coated filamentary, mesh plate or carbon plate triode.

Application -Audio frequency amplifier where power outputs of approximately 8.5watts or less is required at relatively low plate voltages.

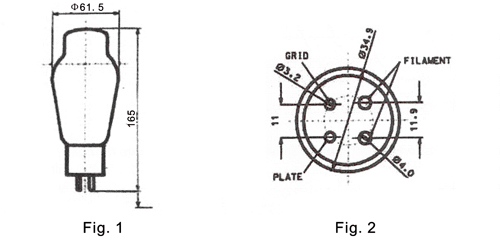

Dimensions -Dimensions, outline diagrams of the tube and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1 and 2.

Nominal operating conditions and parameters
Filament voltage* ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 7.5V
Nominal filament current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 1.25A
Plate voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 450V
Grid voltage** ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ -84V
Grid voltage** ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ -82V
Plate current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 55mA
Plate current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 57mA
Amplification factor ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 3.8
Plate resistance¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­1800omhos
Grid current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 0.05 ¦̀A

*Alternating-current filament supply or Direct-current filament supply.
**Alternating-current filament supply is used. The grid and plate returns should be connected to a center tap on the secondary of the filament transformer.
Direct-current filament supply is used. The grid and platter returns are connected to the negative end of the filament.

Characteristics-Average characteristics

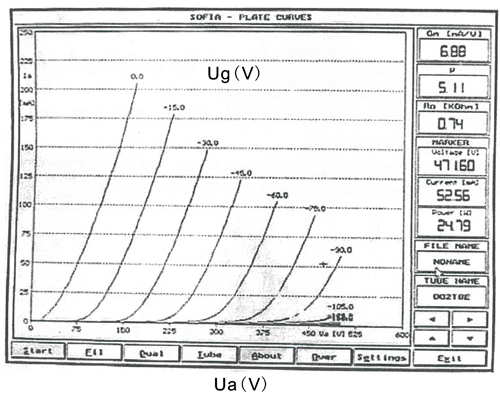

Figure 3. shown typical curves of plate currents of grid voltage for several values of plate voltages. It is alternating-current filament supply.

Fig 4

Limiting Operation Conditions for Safe Nor simultaneous ratings
Maximum plate voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 450 volts
Maximum plate dissipation ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­ 25 watts
